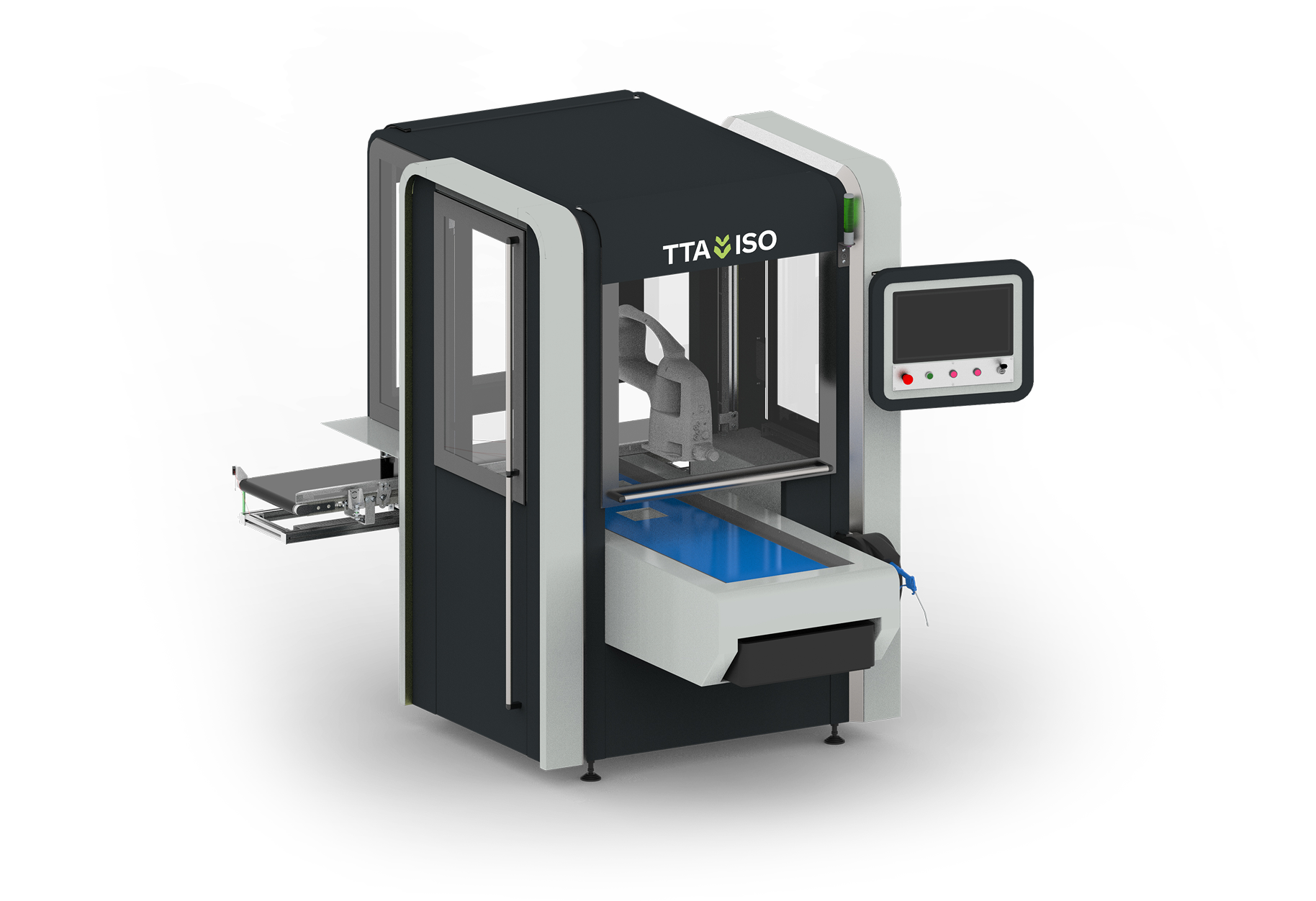

CuttingPlanter 2.0
Next-generation automated planting for cuttings.
A new standard in automated sticking
As nursery operations scale, there is a need for a planting process that combines speed, flexibility, and consistent quality. Manual sticking remains labor-intensive, while differences in cutting size and shape make automating this process a complex challenge.
The CuttingPlanter 2.0 changes that. Advanced vision technology selects each cutting, while a fast and precise robot plants it uniformly at the correct depth. No manual preselection is required.
Automated planting, reimagined

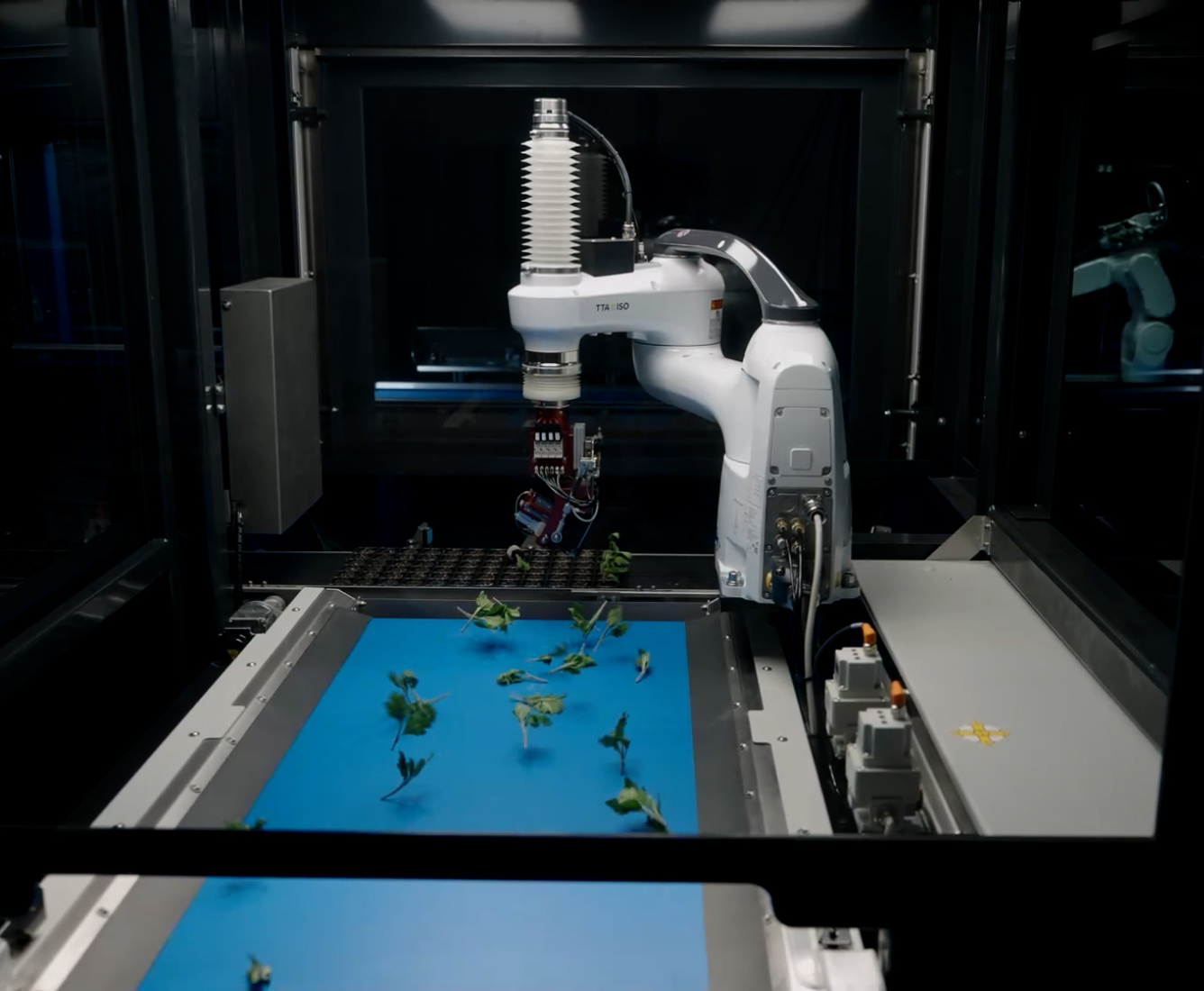

The CuttingPlanter 2.0 combines a wide conveyor belt, a large picking area, and a fast robot to plant up to 3,000 cuttings per hour.

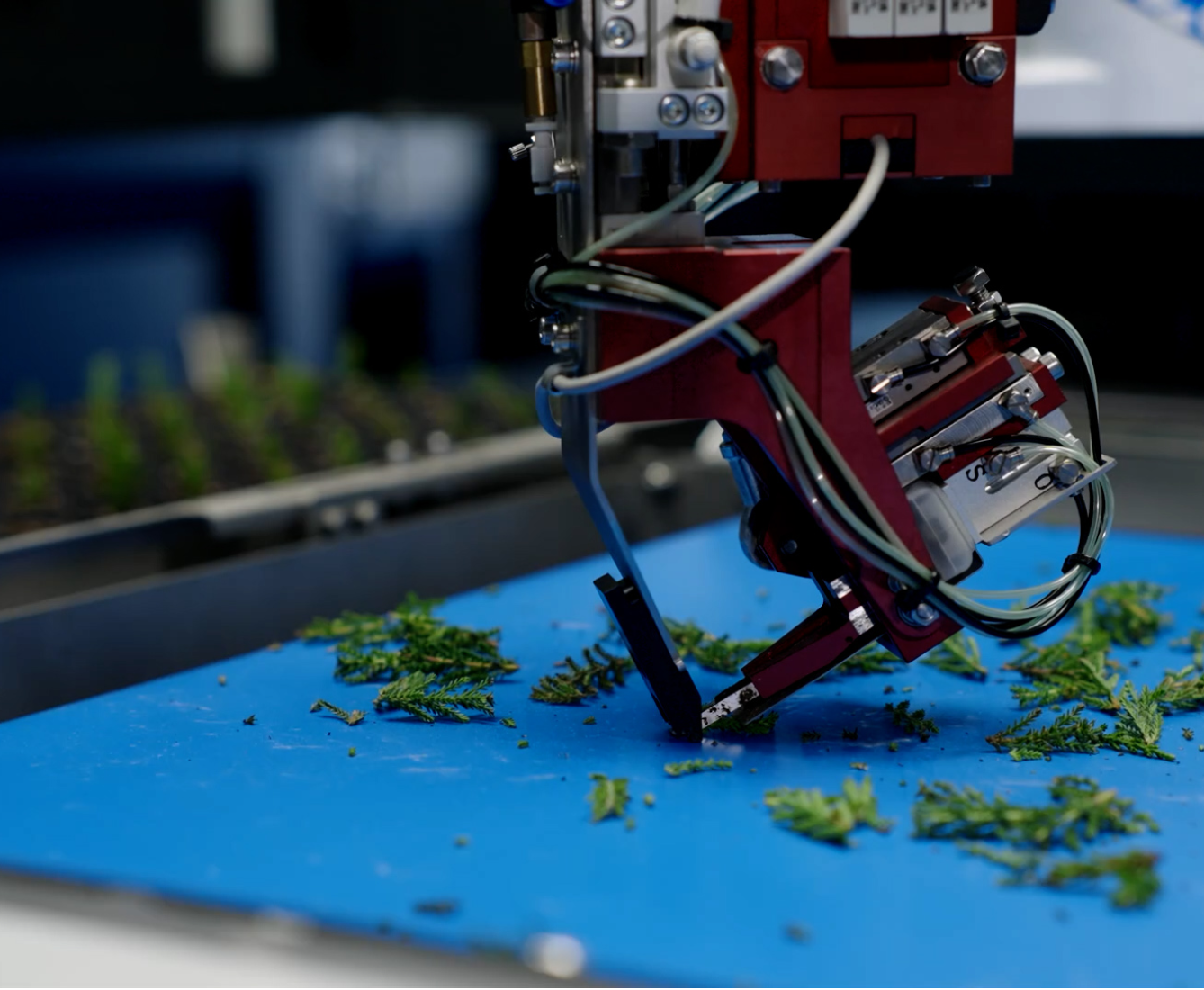

CuttingVision analyzes the cuttings and determines which ones are ready to be planted. The electrically tilting gripper handles a wide range of cutting sizes and enables angled pick-and-place for larger cuttings. Unplanted cuttings are returned to the front of the machine, keeping them in the process.
The machine can be adjusted to different tray and pot formats, planting patterns, and pot sizes. It can be connected to VisionAir and equipped with options such as a presingulator for tangled cuttings and a belt washer for cuttings contaminated with agar or resin.

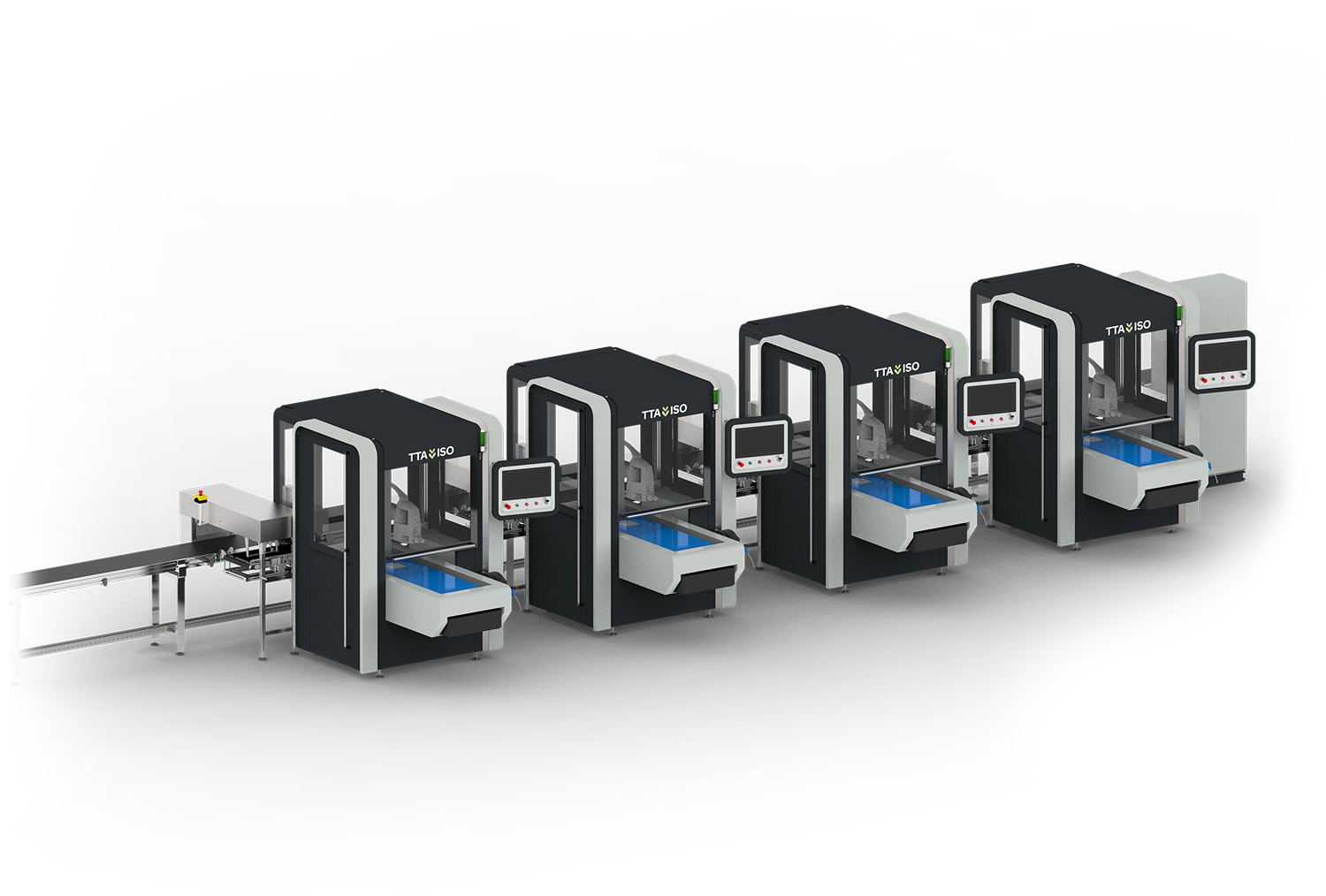

Simple controls allow one operator to manage up to seven CuttingPlanter 2.0 machines, creating a scalable planting process that can grow with production demand.
01
Uniform planting
Every cutting is planted consistently and at the same depth for a stable process.
02
High capacity
Automatically selects and plants up to 3,000 cuttings per hour.
03
Easy to operate
CuttingVision software and an intuitive touchscreen make operation straightforward.
04
Flexible handling
Suitable for different tray and pot formats, planting patterns, pot sizes, and a wide range of cuttings.
05
Scalable operation
One operator can manage up to seven CuttingPlanter 2.0 machines simultaneously.
06
Shared intelligence
VisionHub gives users access to existing cutting setups, saving setup time and making planting configurations more robust as more data becomes available.
Automation that keeps getting smarter
Every new cutting presents its own challenges. That is why the CuttingPlanter 2.0 is connected to VisionHub, TTA-ISO’s shared platform for cutting setups.
The data created during teaching and annotation is collected and made available to CuttingPlanter 2.0 users. Users can reuse existing setups to reduce setup time, while additional data makes configurations more robust.
The result is more than a fast planting machine. It is an automated sticking solution that continues to improve through the experience of its users.
CuttingPlanter 2.0
Ready to take your operations to the next level with cutting-edge automation? Let’s talk — we’re ready to help you grow Beyond Limits.
